Premium commercial heat pump for new buildings and renovations

• Suitable for Apartment Buildings, Hospitals, Warehouses, Production Halls and other...
• Cascade up to 16 units
• Monoblock heat pump
• Modulated output 50 kW or 100 kW
• Energy class A+++ / A+++
• SCOP low temperature - 5.1
• SCOP medium temperature - 3.9
• Natural refrigerant R290
• Output temperature up to 75°C
• Functions: Heating, cooling and water heating
• Operating conditions -25 to 43°C
• Mitsubishi Electric dual rotary compressor specially developed for refrigerant R290
• Heated condensate pan
• Low noise, sound power 77 dB (A) according to EN12102
• 7" touch screen with intuitive control
• WiFi internet connection
• MODBUS RS485, RTU protocol
• Control via Energostation EMS
• Up to 16 units in a cascade allow you to create a cascade with a maximum heating output of 1.6 MW

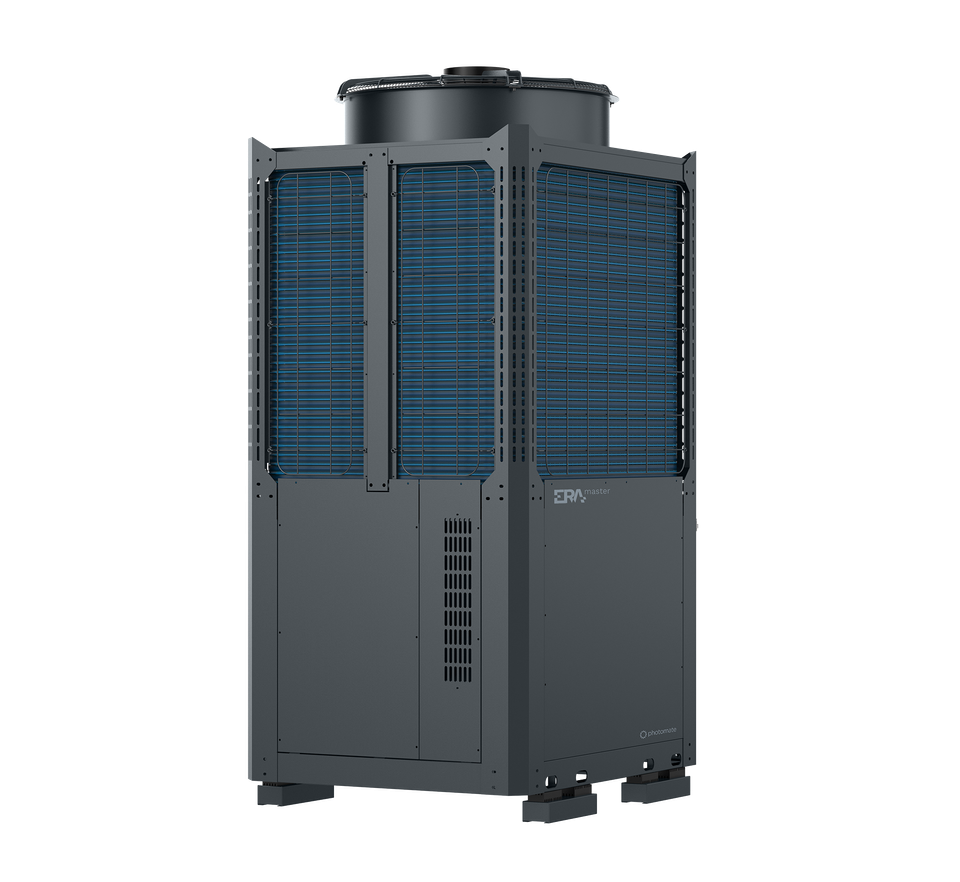

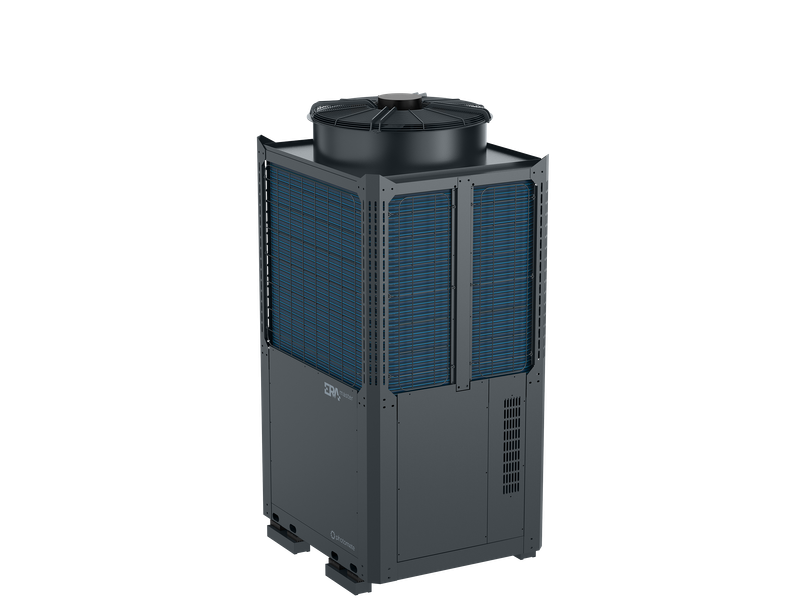

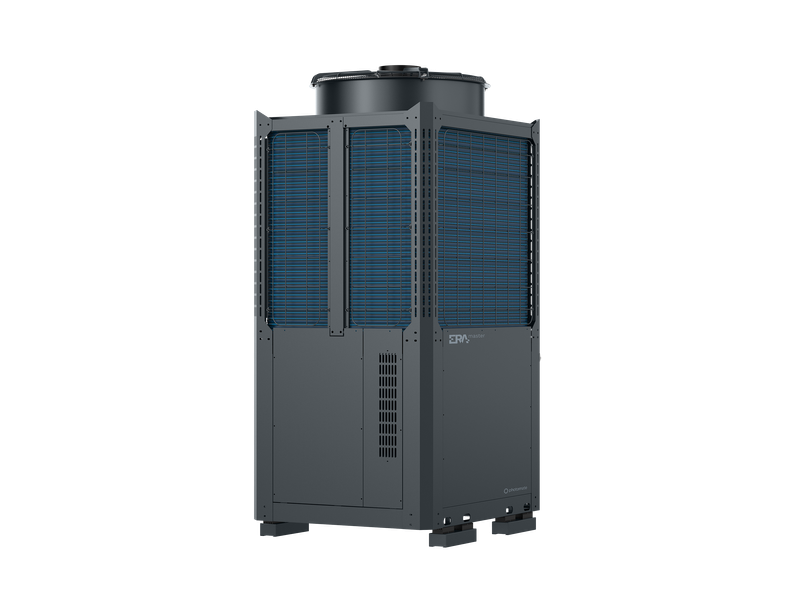

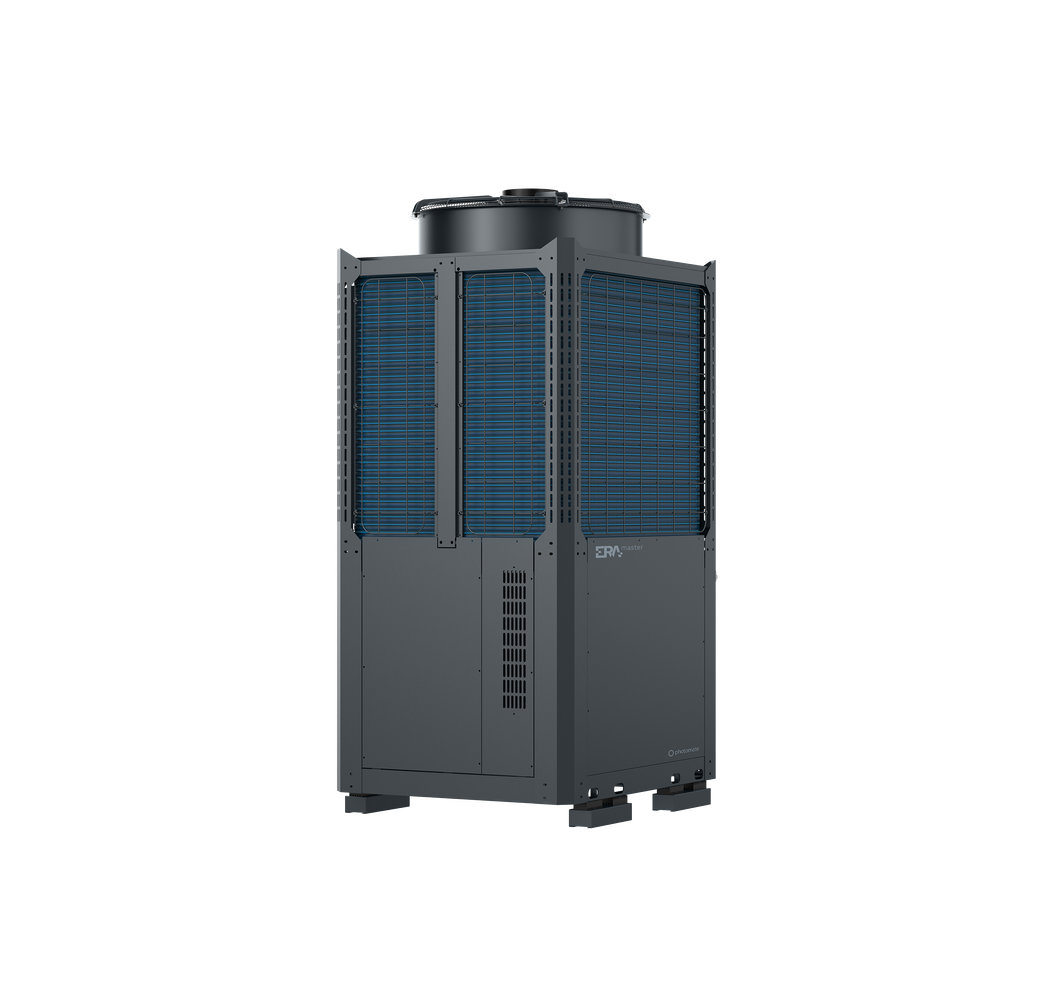

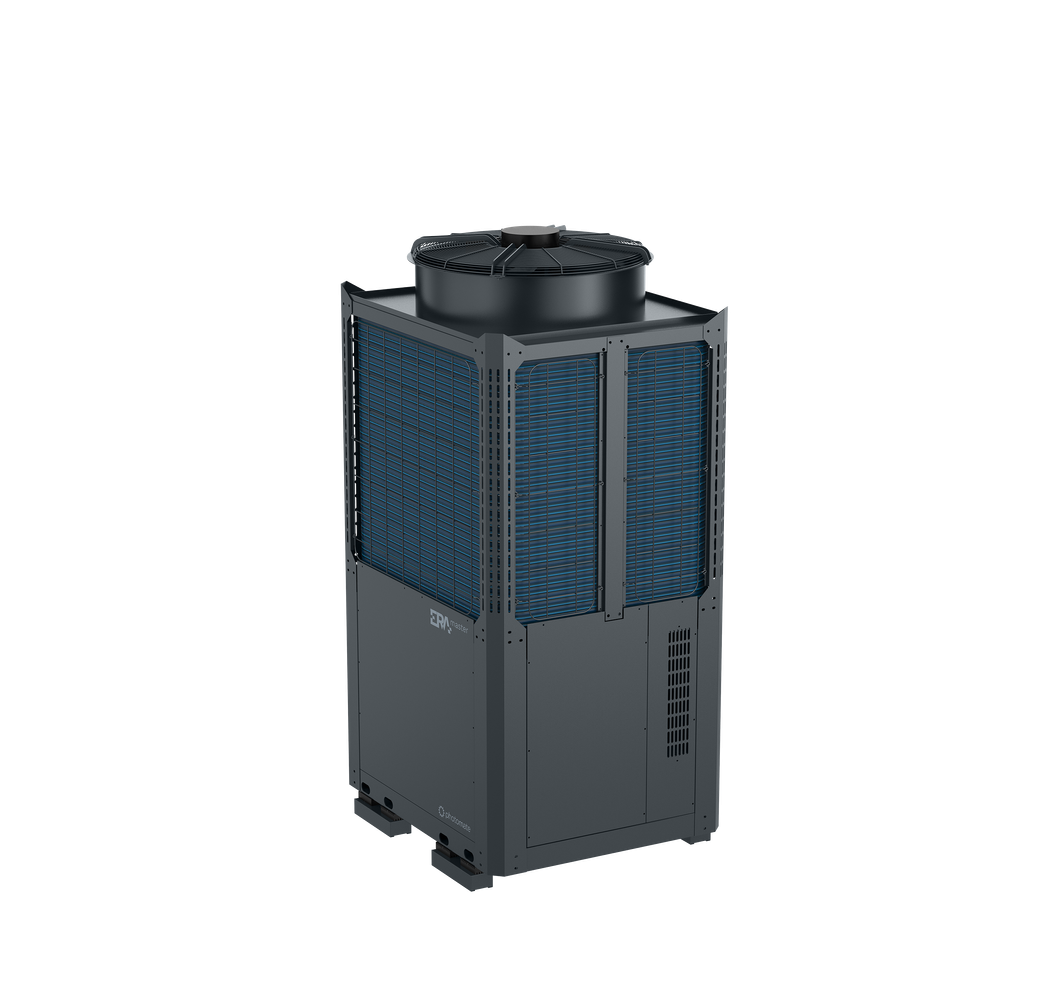

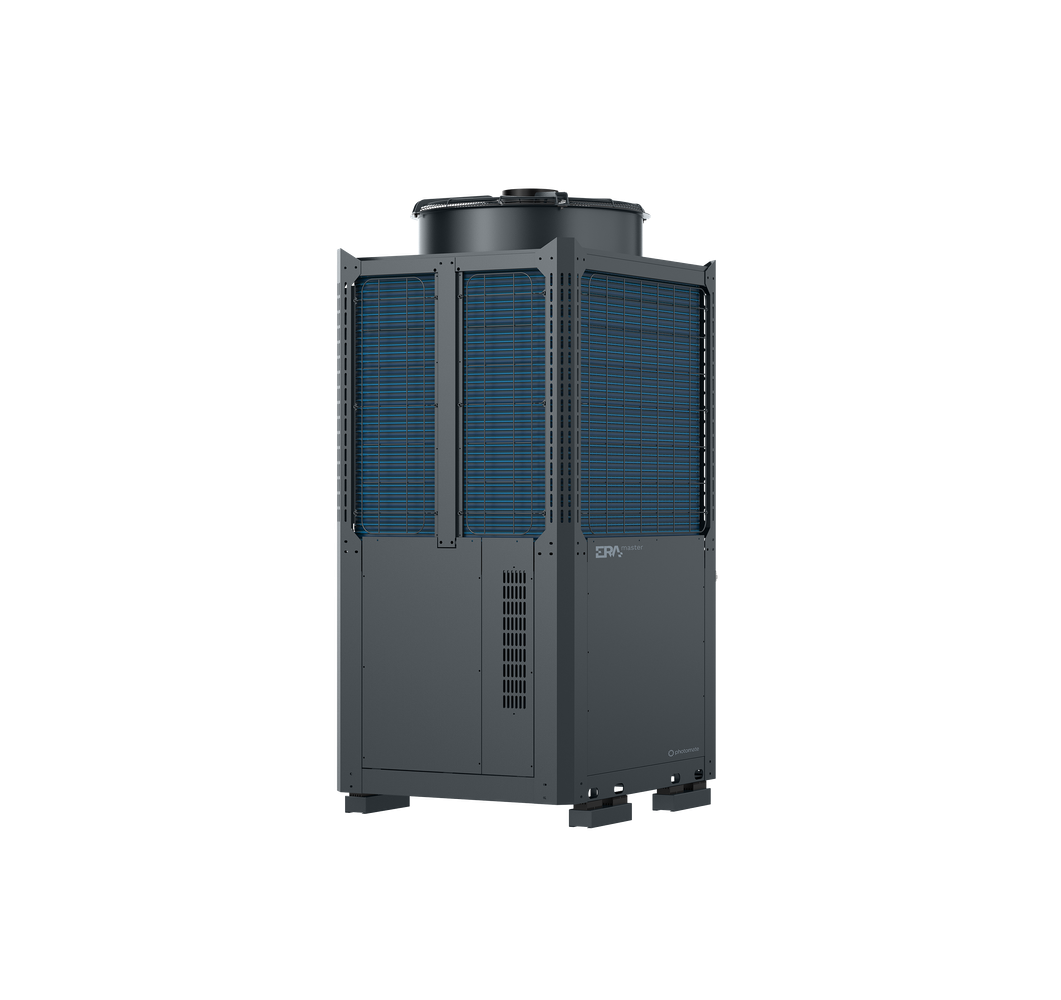

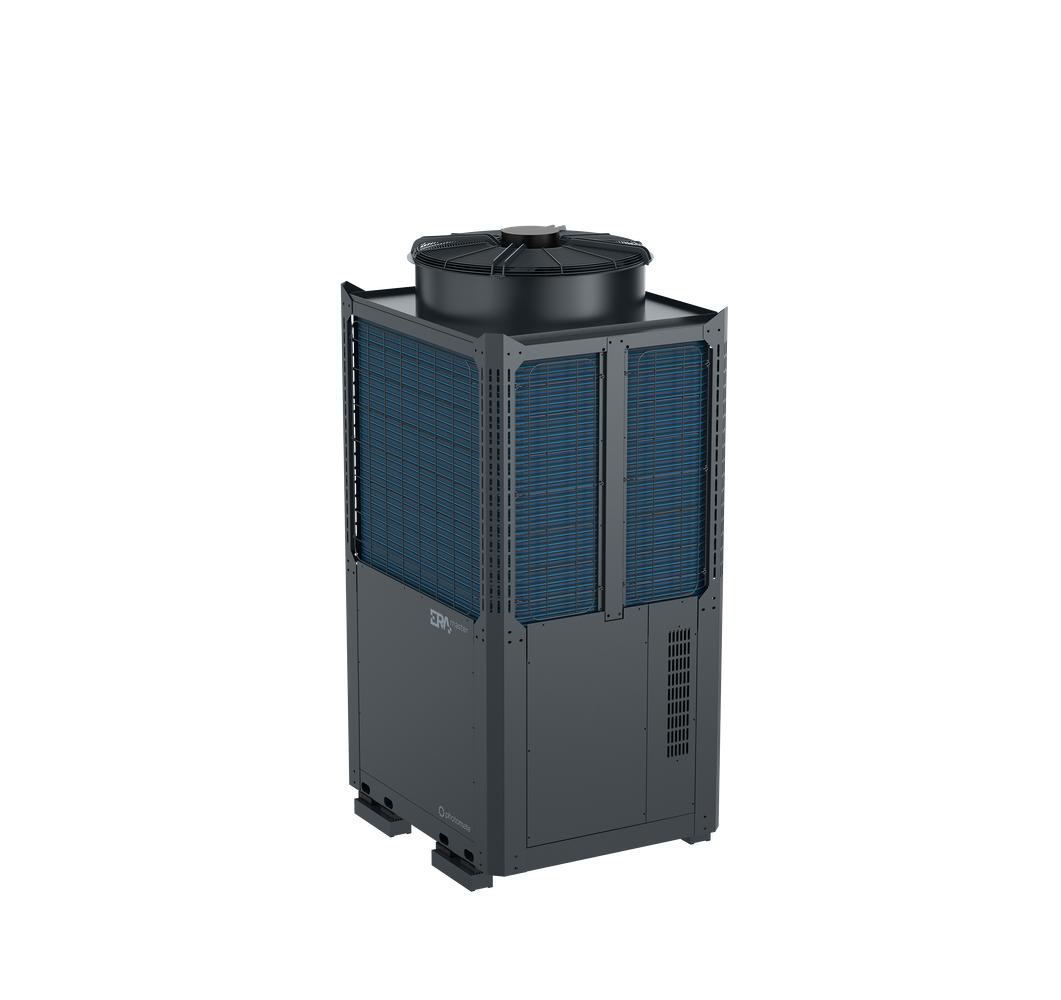

• Hydraulic connection flange DN 50
• Circuit breaker 40 A
• Voltage 3 x 400 V
• Number of fans: 1
• Number of compressors: 2
• Nominal heating water flow: 8.6 m3
• Weight: 450 kg
• Dimensions (l / w / h): 1095×1315×2435

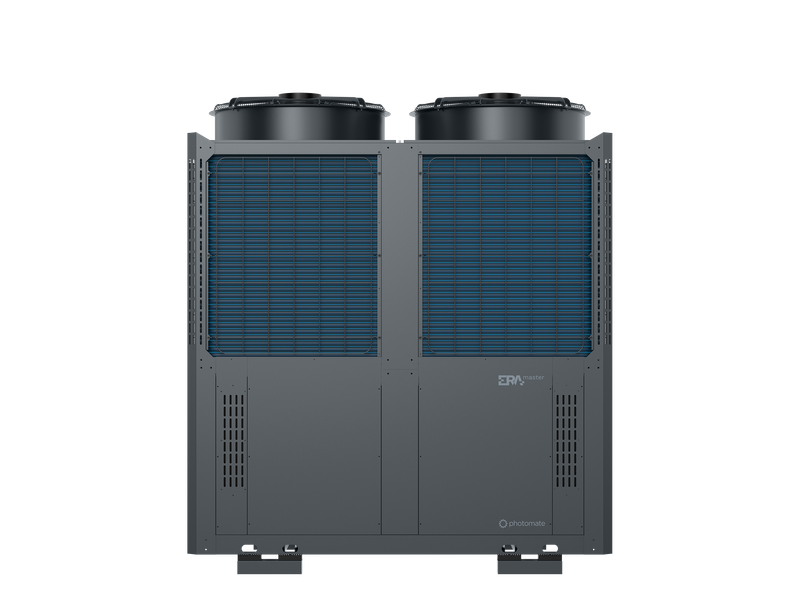

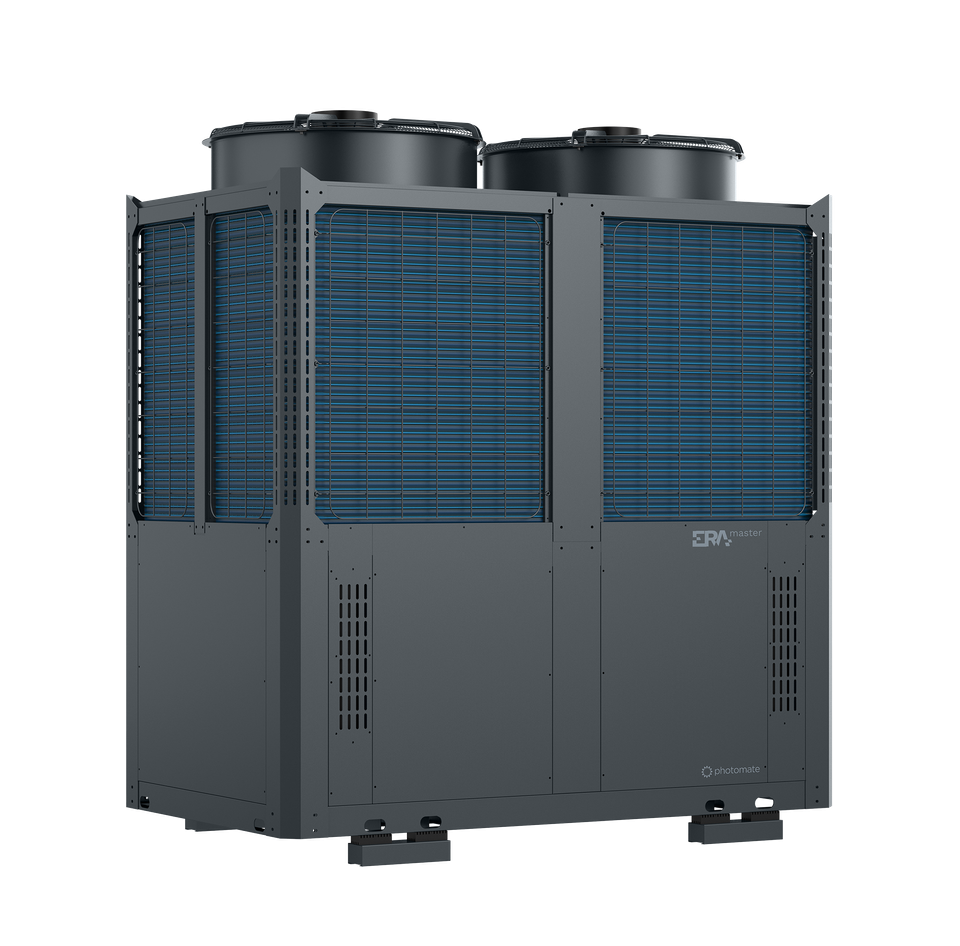

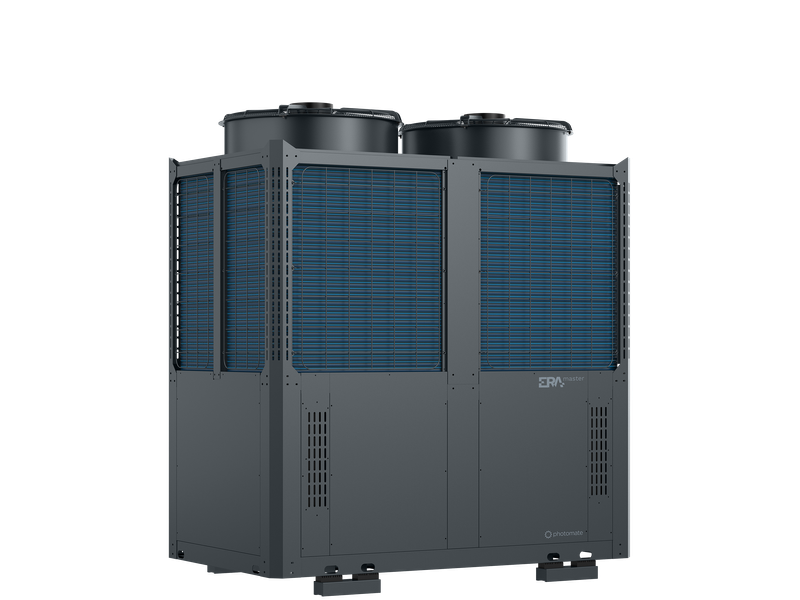

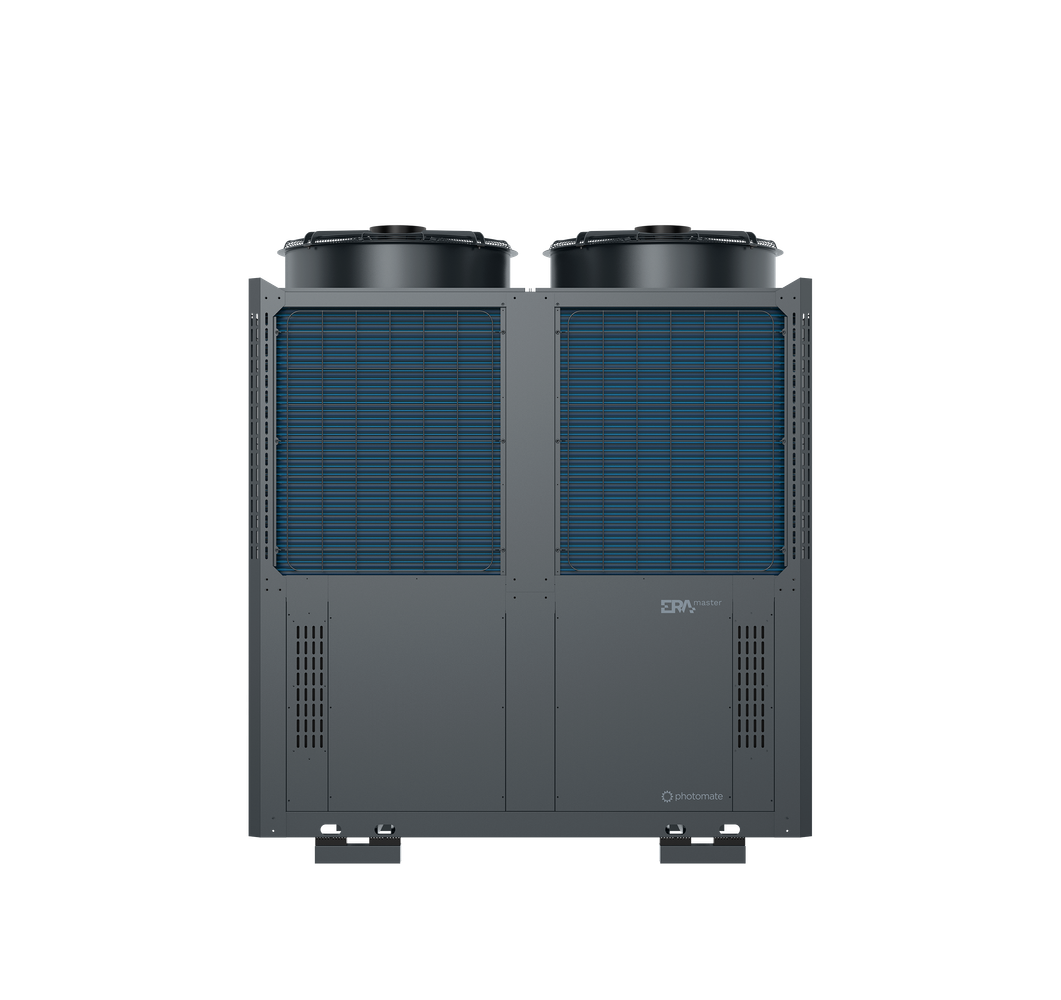

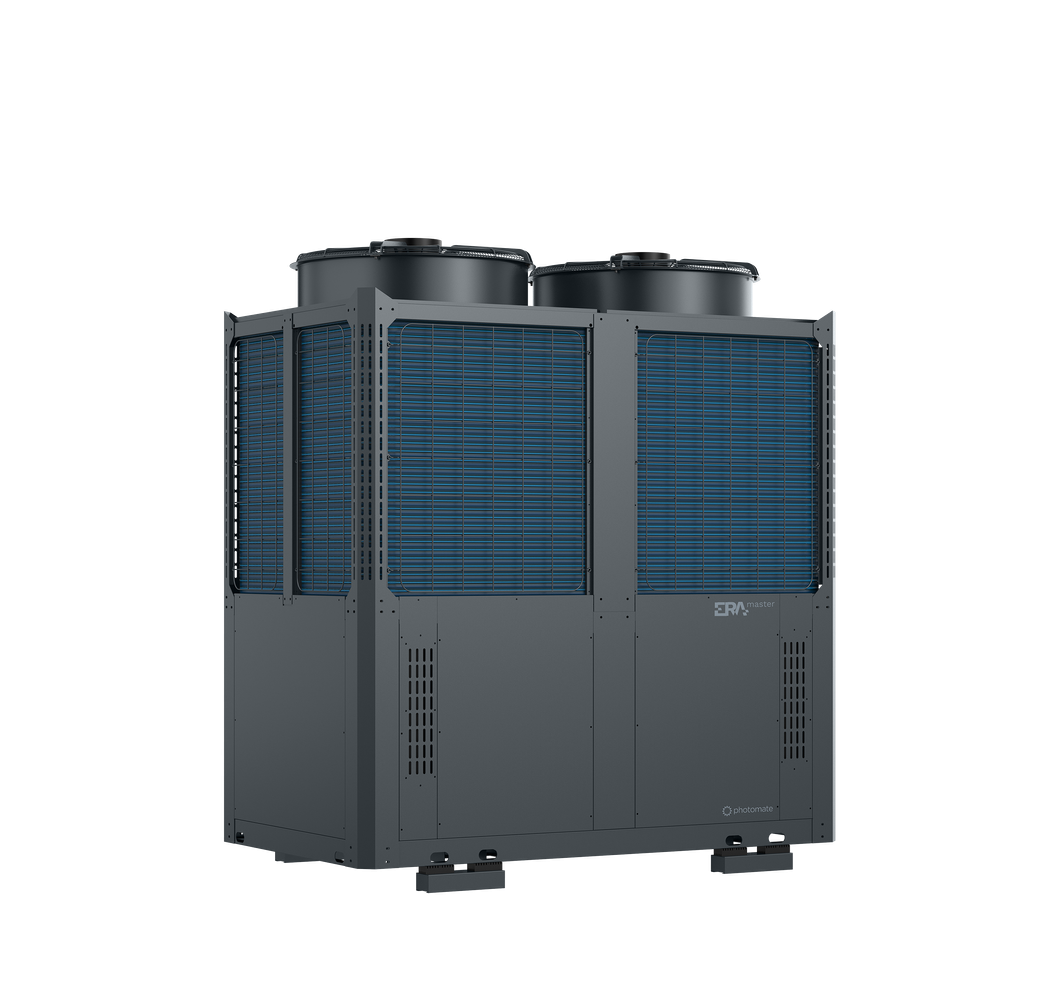

• Heating capacity 28 – 100 kW A7/W35
• Hydraulic connection flange DN 65
• Circuit breaker 40 A
• Voltage 3 x 400 V
• Number of fans: 2
• Number of compressors: 4
• Nominal heating water flow: 17.2 m3
• Weight: 890 kg
• Dimensions (l / w / h): 2190 x 1315 x 2435

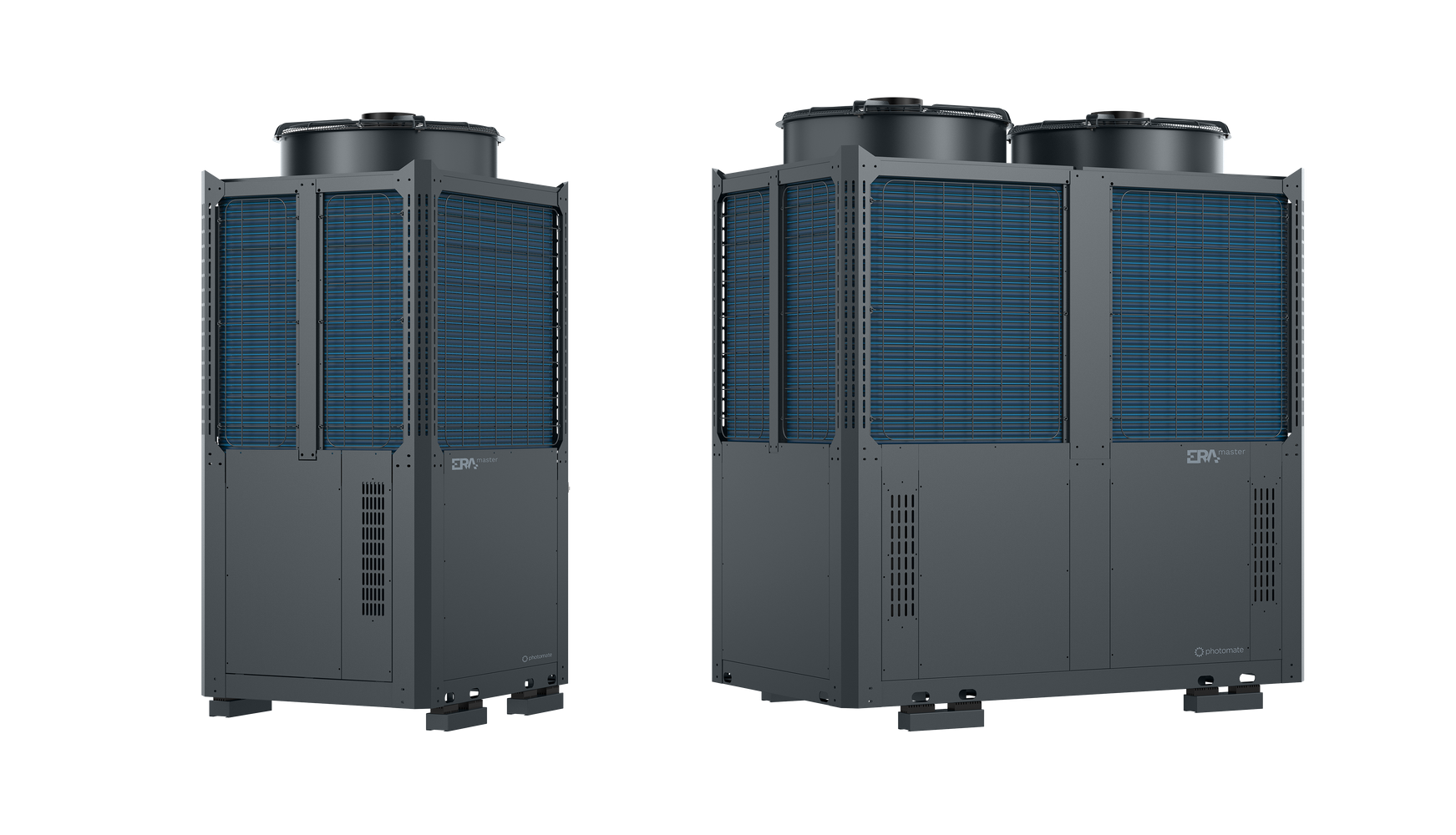

Any combination of EraMASTER 50 kW and 100 kW can always create a system according to the customer's needs:

• Heating capacity
• Cooling capacity
• Top-notch water heating capacity
